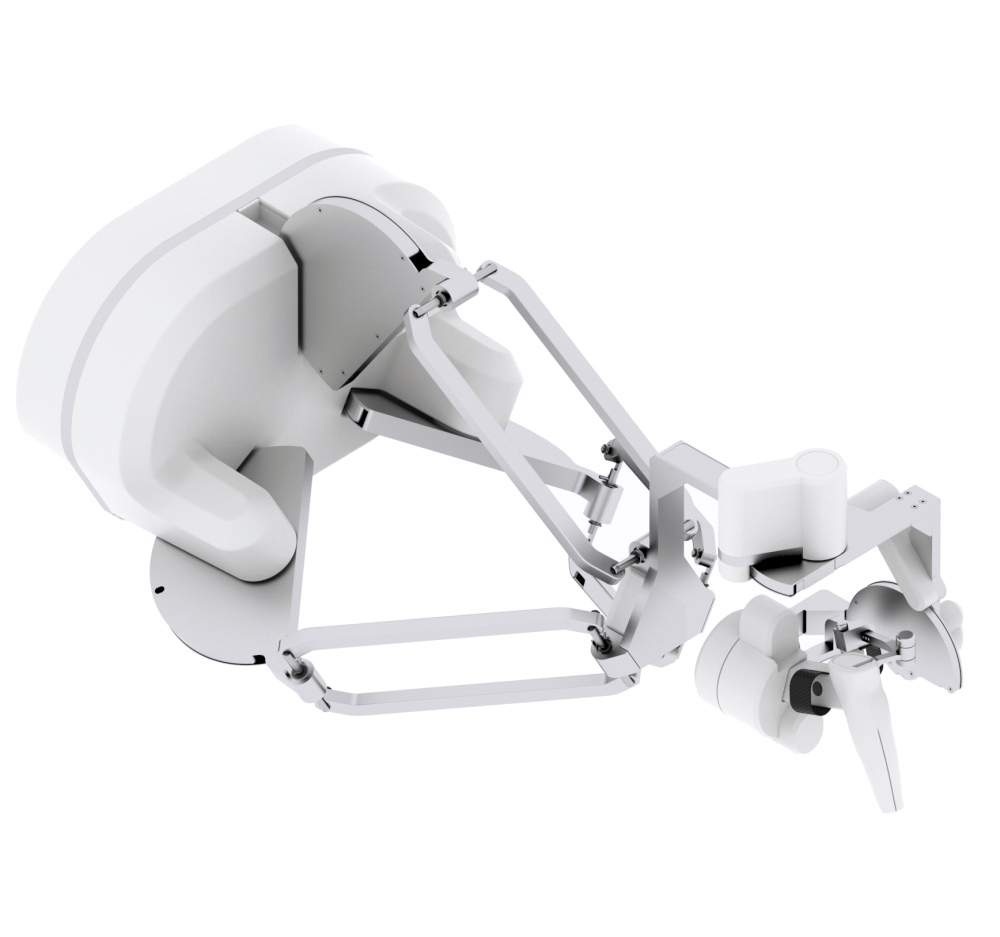

lambda.7
The lambda.7 is the most recent addition to the Force Dimension family of haptic devices. Introducing a larger base compared to the sigma.7, this device also offers seven active degrees of freedom in translation, rotation, and grasping.
The new device has been specifically designed for OEM applications and can be easily customized for integration in surgical consoles. The new wrist also provides three active degrees of freedom with the last degree being the role angle. This new configuration design of the wrist joints facilitates the integration with surgical robot systems.
Finely tuned to display perfect gravity compensation, the force-and-torque-feedback end-effector offers extraordinary haptic performance, enabling instinctive interaction with complex haptic applications.
The lambda.7 device is available in left- and right-hand configuration and is designed for integration in bimanual workstation consoles.
Distinctive Design Features Finely built around its unique parallel kinematics structure, the lambda.7 device is designed for performance. Its superior mechanical stiffness, combined with its real-time USB 2.0 controller, enables the rendering of high contact forces at a rate attaining 4 KHz. To provide the highest degree of haptic transparency, accurate gravity compensation is maintained in translation and orientation space by perfectly coupling passive and actuated components together. Each system is individually calibrated to ensure repeatable and optimal precision and performance. Its unique kinematics design perfectly decouples translations and rotations, enabling the lambda.7 to exceed the requirements of the most demanding applications. Force Dimension also provides advanced technical support for dedicated applications that require custom end-effectors for the lambda.7. |
Application Development
A powerful SDK provides highly advanced control over all Force Dimension devices in both haptics and robotics mode. The Haptics SDK offers all the basic functions to read positions and to program desired forces in Cartesian space. Expanding these fundamental capabilities, the Robotics SDK leverages the Haptic SDK by introducing an advanced set of real-time routines to precisely control the position of the device. The Force Dimension SDK provides support for multi-threaded, multi-device programming and is available on a wide range of platforms including Windows, Linux, macOS, QNX and VxWorks. The combination of both haptics and robotics capabilities into a single unified framework allows developers to create powerful collaborative interfaces between people and machines.
| workspace | translation rotation gripper | ∅ 240 x 170 mm 180 (yaw) x 140 (pitch) x 290 (roll) deg 15 deg | forces | translation rotation gripper | 20.0 N 200 (yaw), 400 (pitch), 100 (roll) mNm 8.0 N | resolution | translation rotation gripper | < 0.0015 mm 0.0067 (yaw) x 0.0067 (pitch) x 0.0135 (roll) deg 0.02 mm | active locks | translation | parking position | interface | standard rate | USB 2.0 up to 4 KHz | power | universal | 100V - 240V | platforms | Microsoft Linux Apple Blackberry WindRiver | Windows all distributions macOS QNX VxWorks | software | SDK Haptics SDK Robotics CHAI3D | ergonomics | available in left- and right-hand configuration | structure | delta-based parallel kinematics hand-centered rotation movements decoupling between translation and rotation movements active gravity compensation | calibration | automatic driftless | user input | 1 simulated button using the force gripper | safety | velocity monitoring electromagnetic damping |
